Overview of the plan

Overview: Multi cell Battery Pack MOSFET:

Applied to lithium-ion power battery protection panels, compatible with domestic and foreign brands

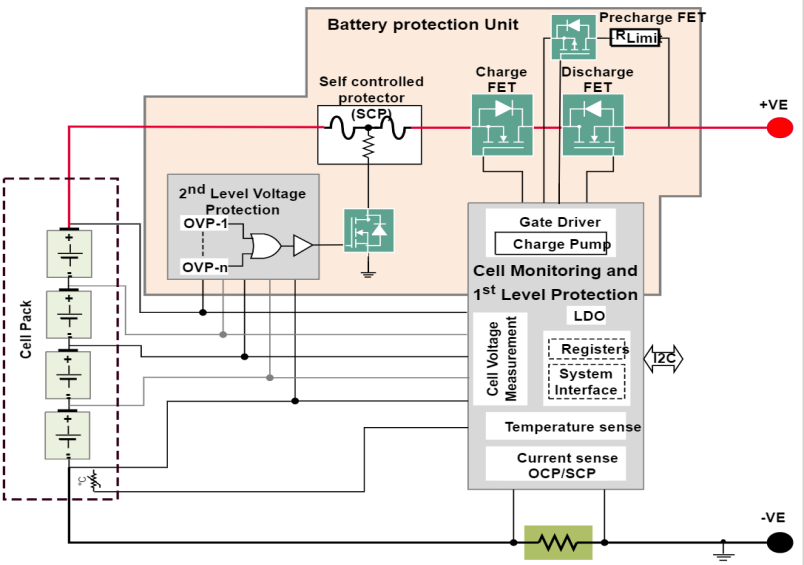

Application circuit diagram
Application Product List
Part Number Package Configuration Polarity ESD Diode VDS (V) VGS  (±V) ID (A) PD (W) RDS(ON) (mΩ max) at VGS= VGS(th) (max V) Qg* (nC) Qgd (nC)
25°C 25°C 10V 4.5V
CFN6144 DFN5*6 Single N NO 40 20 110 58 2.7 4.3 2.5 112 26.5
CFW7437 TO-262 Single N NO 40 20 180 150 1.9 2.8 3.5 106 25.9
CFT7437 TO-220 Single N NO 40 20 180 150 1.9 2.7 3.5 106 25.9
CFN7084 DFN5*6 Single N NO 40 20 165 120 1.2 2.1 3.5 106 25.9
CFN4R5N40 DFN5*6 Single N NO 40 20 60 33.8 5.4 10.4 2.5 55 13.5
CFN2R3N30 DFN5*6 Single N NO 30 20 110 79 2.9 5.5 2.5 56.2 15.8
CFN1N40L DFN5*6 Single N NO 40 20 165 120 1.2 2 2.5 234 20
Tel: Miss Zhang 0755-26636575
